$30.51
- Hign-concerned Chemical: None
- Direction: None
- Security Mode: Fail Secure
- Model Number: P03
- Origin: Mainland China
- Smart home platform: None
- Input voltage: 100V-240V
- Input Frequency: 50Hz-60Hz
- Output voltage: DC12V
- Output Current: 3A/5A
How to Choose 12V3A or 12V5A?
If you are using one lock from the power supplier, then 12V3A is enough.
If you are using two locks from the power supplier, then 12V5A is more stable even 12V3A is ok to use.
Description:
This is a 100V–240V (12V3A and 12V5A) Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-IC Reader .etc.
Functions:
It controls electric lock directly.
Can reduce the load of access controller, save wiring to reduc the hidden trouble
Set NC / NO outputs, can control various types of electric locks
Based delay control circuit, lock time can be in 0-10 seconds
Automatic protection function, unexpected situations such as
when the power supply short-circuit occurs, the power may be
temporarily disconnected or the fuse auto insurance line off

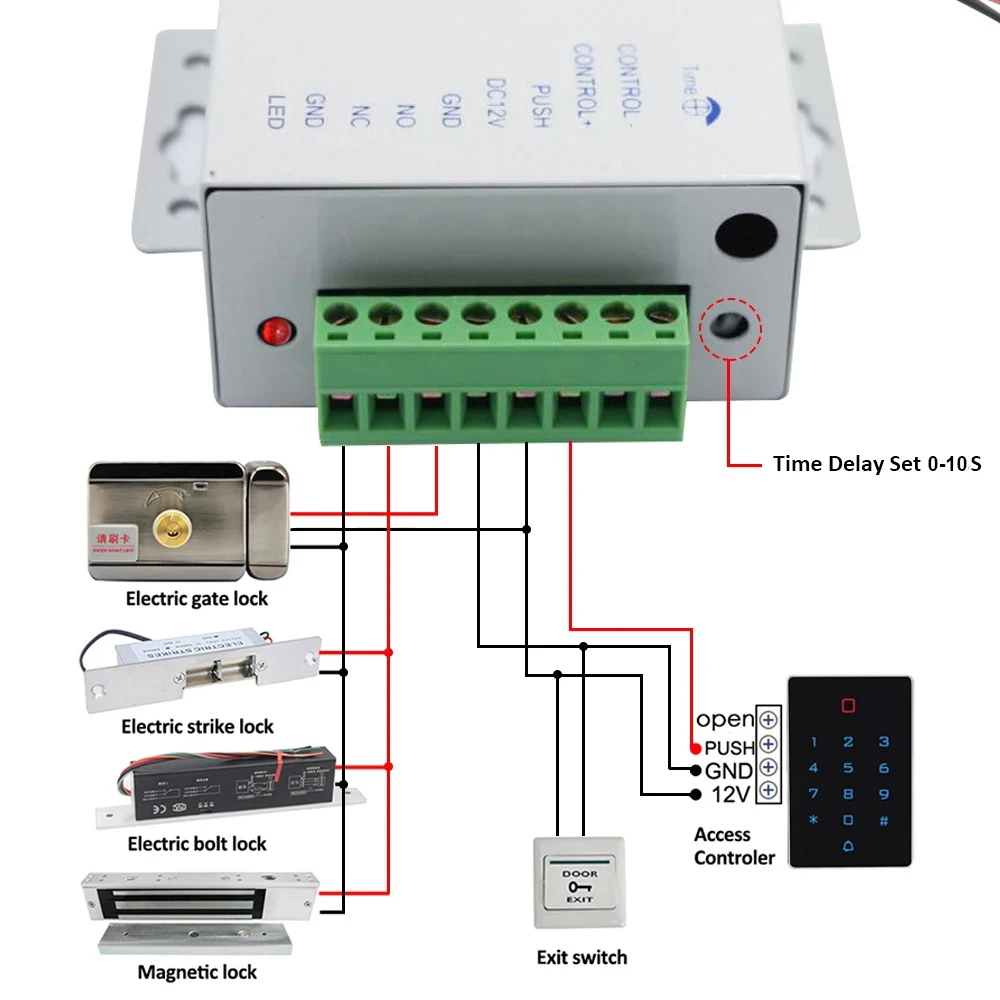

Operative device: E/M Lock, Access Controller, Exit Push Button
Specification:
AC input: Standard AC110V-260V(12V3A and 12V5A)
DC output: Stabilivolt DC12V/ 3A and DC12V/5
