$51.54
- Model Number: S300Tuya+10k
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: None
- Material: High quality ABS
- Working Voltage: DC12V
- Working frequency: 13.56MHz
- User capacity: 300 fingerprints, 1000 cards, 1000 Code
- Waterproof function: IP65 Waterproof
- Door bell: Support

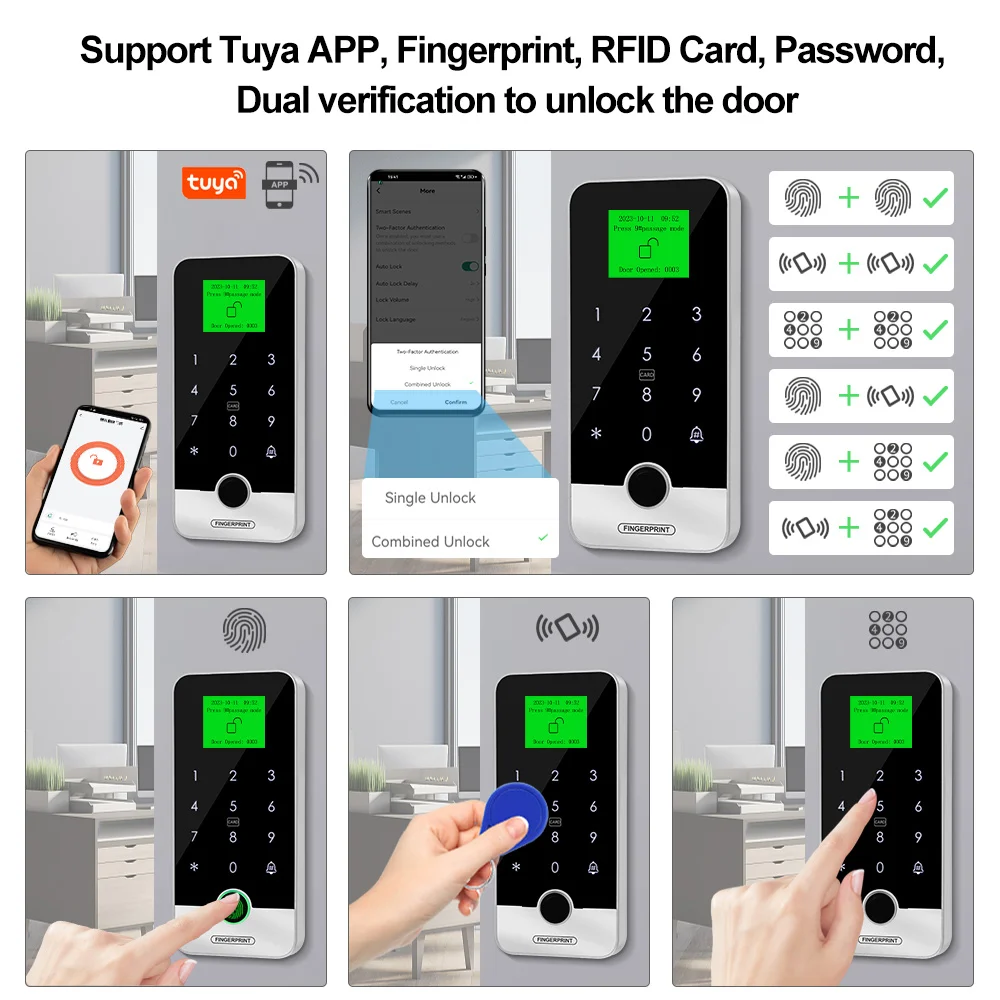

- Unlock method: Tuya APP, Fingerprint , RFID Card, Password
- Wiegand interface: WG26 / 34
- Type: Access Control Keypad

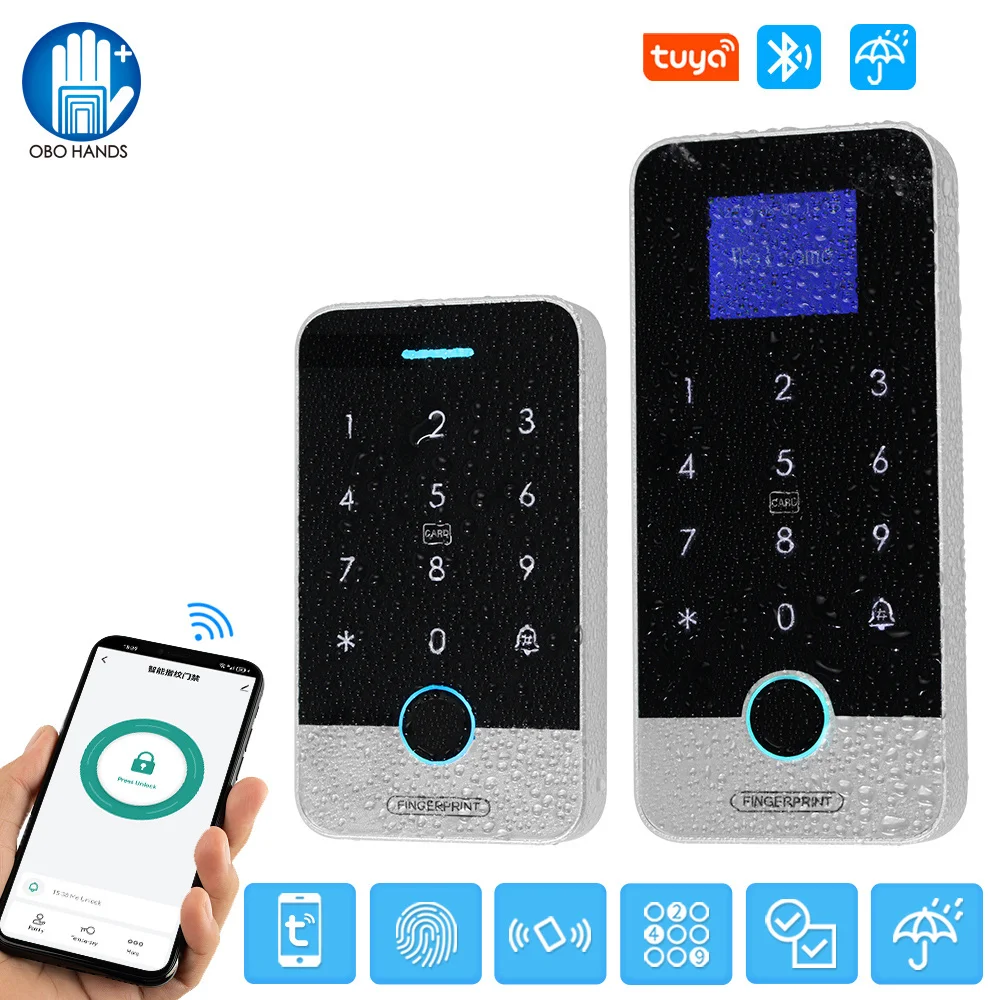

Waterproof Bluetooth Tuya APP Fingerprint Access Controller Standalone RFID Keyboard Touch Keypad 13.56MHz Door Opener System
-
Material: high quality ABS plastic
-
Working voltage: DC 12V
-
Working current: 500mA
-
Fingerprint capacity: 300
-
Card capacity: 1000
-
Password capacity: 1000
-
Panel: touch screen panel
-
Working frequency: 13.56MHz
-
Card reading type: support MF 1K compatible card
-
Card reading distance: 0-5CM
-
ldentification method: Fingerprint, RFID Card, Password, Tuya APP.
-
Record capacity: Mobile phone APP remotely view the latest door opening information.
-
Backlight: has white backlight
-

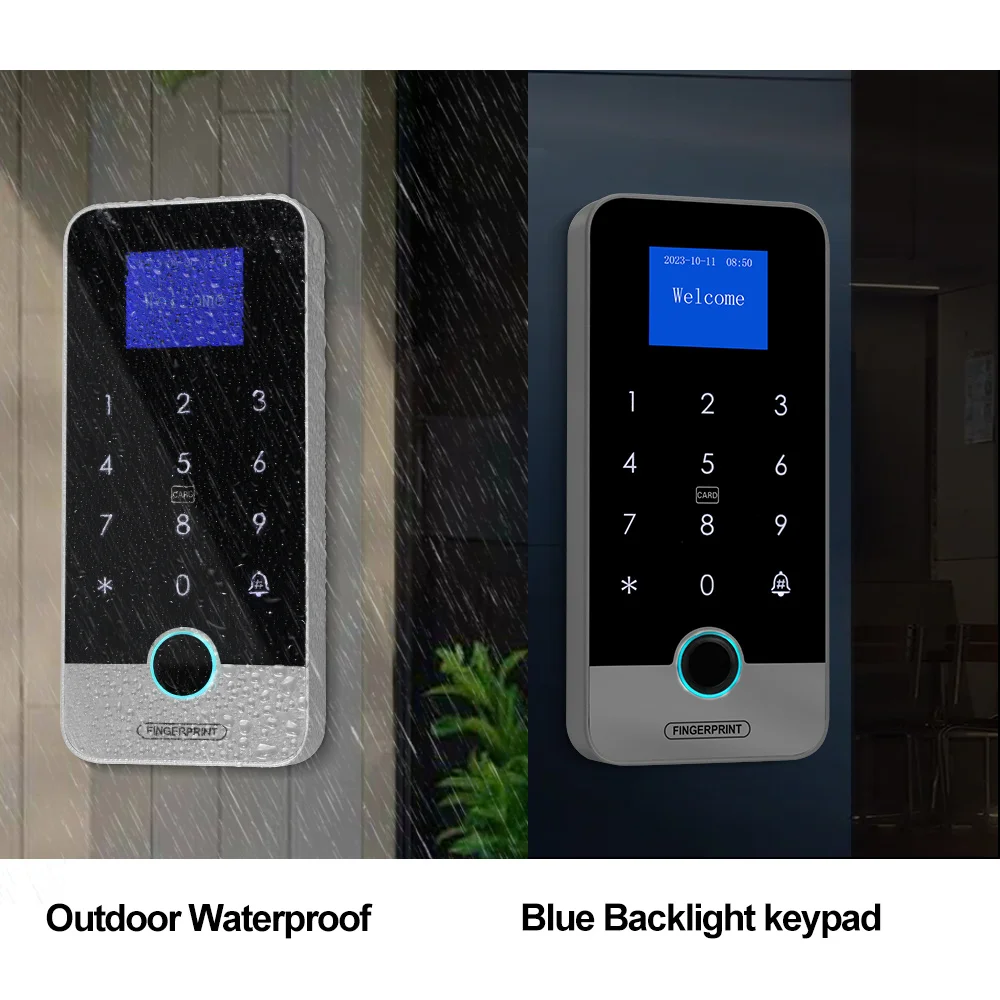

Waterproof function: IP65
-
Doorbell button: support wired doorbell
-
Display Language (S300X): Supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian.
-
Working temperature: -20。C ~ 50。C
-
Working Humidity: 20% ~ 90%
-
Product size of S300A: 132*75*18mm
-
Product size of S300X: 163*75*18mm
Support 300 Fingerprints, 1000 RFID cards, 1000 password user capacity,
Mobile phone APP remotely view the latest opening information, more secure!
1) Supports language: Chinese, English.
2) Can add fingerprints, password, RFID cards on the APP, it’s very convenient.

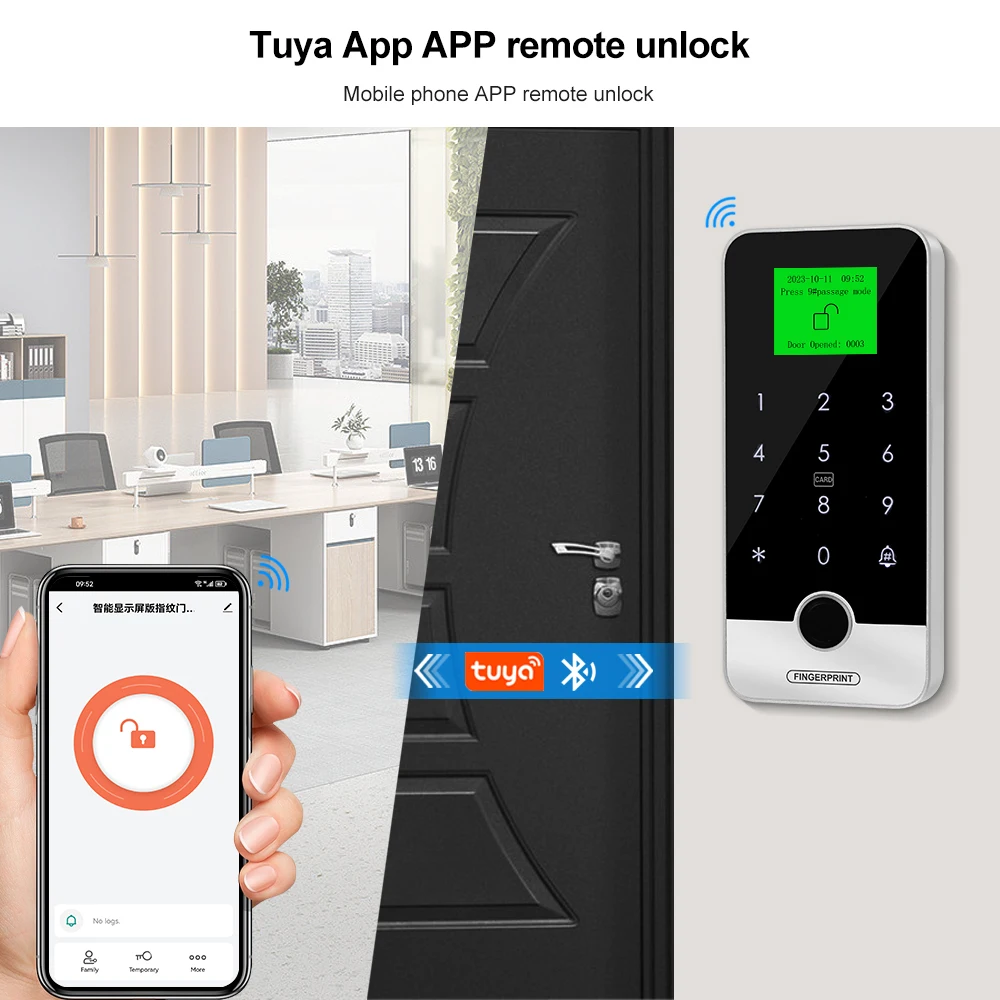

3) Can unlock the door with Tuya APP unlocking button, or Tuya password.
4) Can view unlock records. Click reminder information to view logs.
5) Support only one mobile phone to use Tuya APP. Need to delete device if other people want to use Tuya APP.

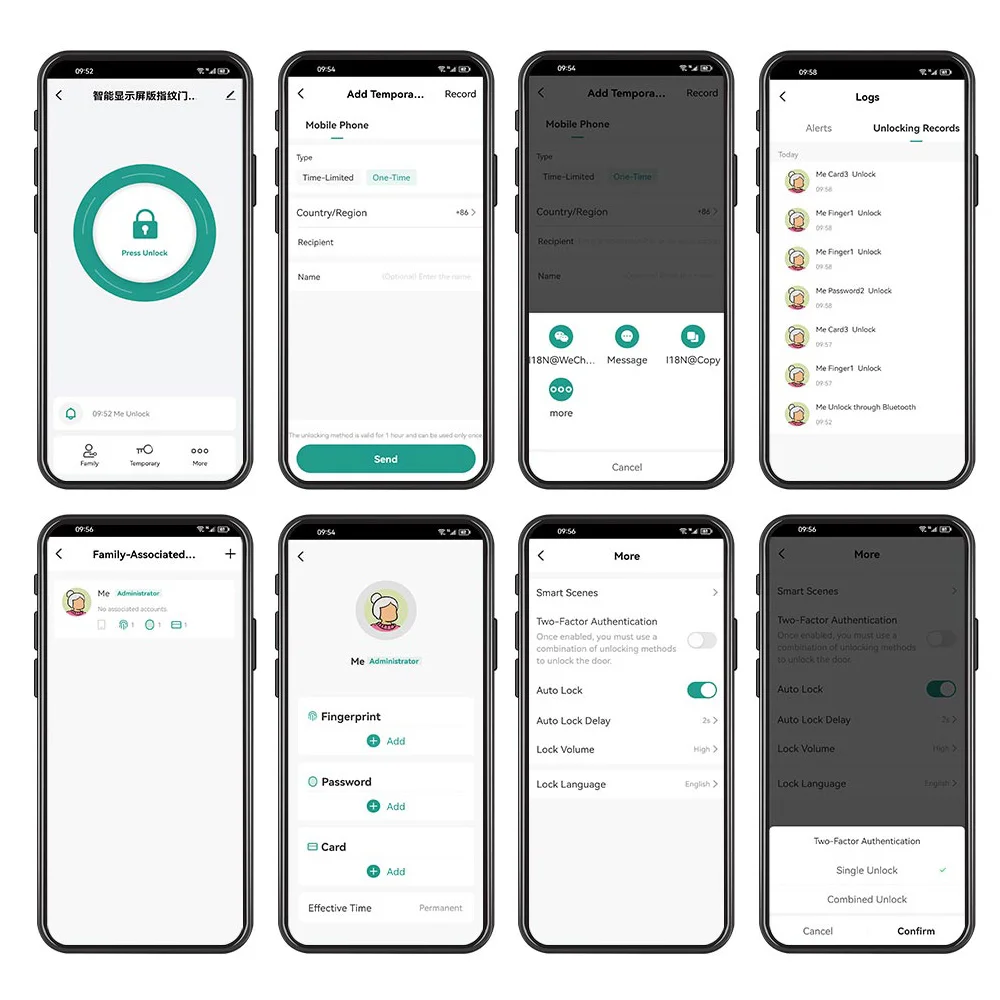

Tuya APP Setting Instruction
1) Scan QR code, or Search "Tuya" on App store to download it.
2) Turn on Tuya APP to add new equipment.
3) Trun on bluetooth, Select "Auto scan", click "Searching".
4) Connect with available devices, click "Next".
5) Connecting, Added successfully, click "Done".
6) Click setting, turn on "remote unlock setting".
7) Select user, click "+" to add user, fill in name, click next step.
8) Add user fingerprints, Code, Cards.
9) Add ordinary user by clicking ordinary member “+”.
10) Add code user by Time-Limited: input phone number, set effective time and ineffective time, click "Send".
11) Add temporary code: click "One-Time’", input phone number, click "Send". (Notice: The code valid time for 1 hours and only can be used once.)

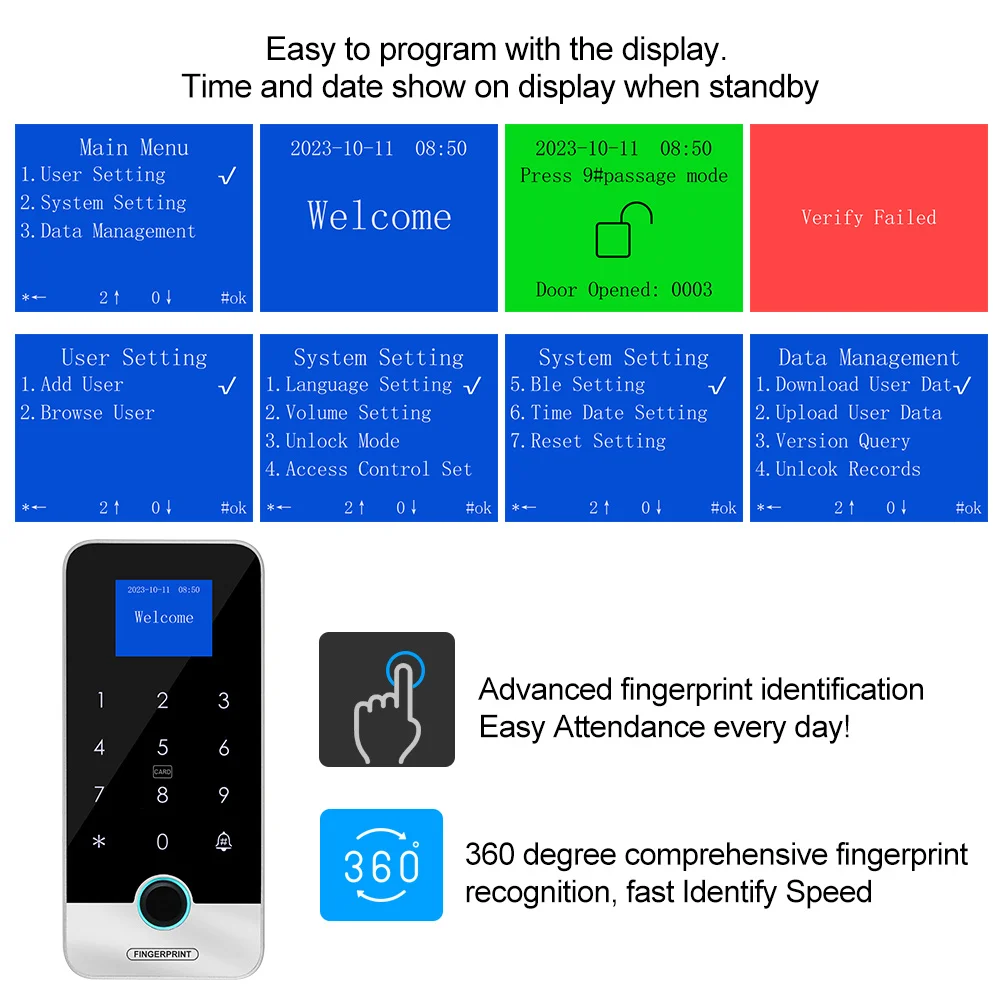

Easy installation and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Operating frequency: 13.56MHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.
